PRODUCT WEIGHT CONTROL (G/M)
- CONTROL OF THE AVAILABILITY OF RAW MATERIALS

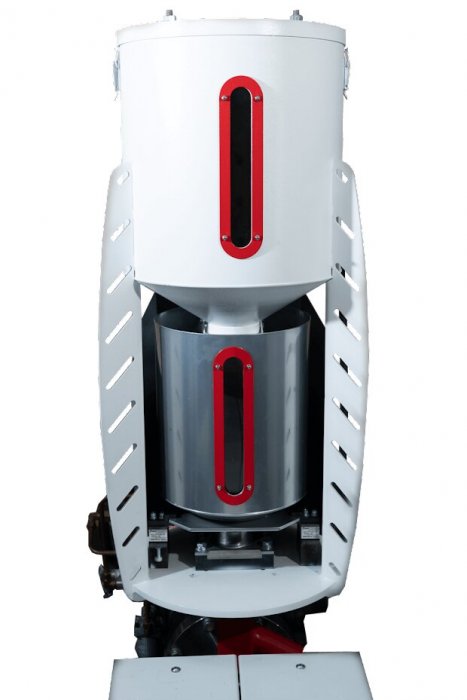

visual control over the availability of raw materials through the window - WEIGHING ACCURACY
constant weighing takes place with the help of load cells, corresponds to an error of +/-0.02%
PRINCIPLE OF OPERATION
The system automatically simultaneously regulates the feed of raw materials, the speed of rotation of the screws and the speed of extraction, which makes it possible to maintain a clearly defined value of the weight of the linear meter of the product throughout the extrusion process. All information is sent to the controller and the current consumption of raw materials is continuously displayed on the display.
ADDITIONAL OPTIONS
- Tension sensor
- Storage hopper
ADVANTAGES
- Stable product weight regardless of the degree of filter contamination
- Can be adapted to work with any type of vacuum loaders for raw material.
- Automatic control of the layers ratio during multilayer extrusion
- Improving the quality of finished products and reducing defects
- Сonstant weighing takes place with the help of load cells, corresponds to an error of +/-0.02
Characteristics
| PARAMETER | EC 150 | EC 300 |
|---|---|---|
| Dimensions (LxWxH), mm | 559x559x1 110 | 559x559x1 260 |
| Production capacity (kg/h) | to 150 | to 300 |
| Recyclable materials | Granulated material (granule size 2-5 mm per batch)) | |
| Number of load cells | 2 | 2 |
| Accuracy of maintaining a given weight (%) | to 1 | to 1 |
| Power consumption (kW) | 0,06 | 0,06 |
| Volume of weighing hopper (l) | 15 | 30 |
| Сontrol unit | Remote type, Weintek touch display, diagonal 7 inches | |
| Сonnection capability | Ethernet | Ethernet |
| Safety | 3 adjustable security levels with freely selectable access codes | |
| Power | 220 V 50 Hz |
220 V 50 Hz |
| Сonnecting pipe | 1 set | 1 set |
